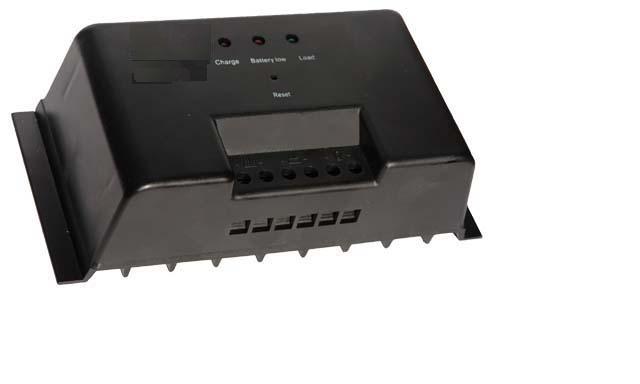

Solar Charge Controller MPPT30

Item Number : Solar Charge Controller MPPT30

Product Name : Chage Controller

Products Features

This MPPT series solar charge controller is not only have above mentioned special function, at the same time including completely protecting and controlling functions:

Overcharge protection

Overdischarge protection

Battery reverse current protection

Overloading protection

Short circuit protection

Reverse polarity connection protection

Products Details

Model: MPPT30

Rated voltage: DC12V / 24V / 48V

Max current: 30A

No load loss: 45mA/12V / 24V

Voltage drop: 300mV

Max voltage of solar panel: 92V/48V

Full charge cut: 56V/48V

Low voltage cut: 42V/48V

Reconnected voltage: 50.4V/48V

Temperature compensation: -3mV/ceII

Efficiency: 95%~97

Wire area: 12A/ mm2

Electrical power using efficiency: Can increase 1030
