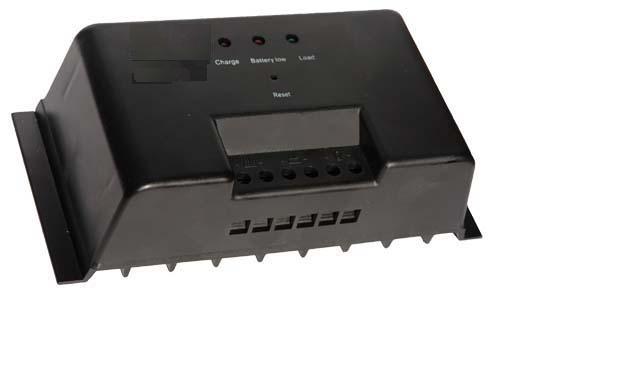

Solar Charge Controller MPPT20

Item Number : Solar Charge Controller MPPT20

Product Name : Chage Controller

Products Features

This MPPT series solar charge controller is not only have above mentioned special function, at the same time including completely protecting and controlling functions:

Overcharge protection

Overdischarge protection

Battery reverse current protection

Overloading protection

Short circuit protection

Reverse polarity connection protection

Products Details

Model: MPPT20

Rated voltage: DC12V / 24V / 48V

Max current: 20A

No load loss: 30mA/48V

Voltage drop: 300mV

Max voltage of solar panel: 46/24V

Full charge cut: 28/24V

Low voltage cut: 21/24V

Reconnected voltage: 25.2V/24V

Temperature compensation: -3mV/ceII

Efficiency: 95%~97

Wire area: 12A/ mm2

Electrical power using efficiency: Can increase 1030
