Home > Products > Solar Power Kits > Solar Power System SPS2-50W-12V

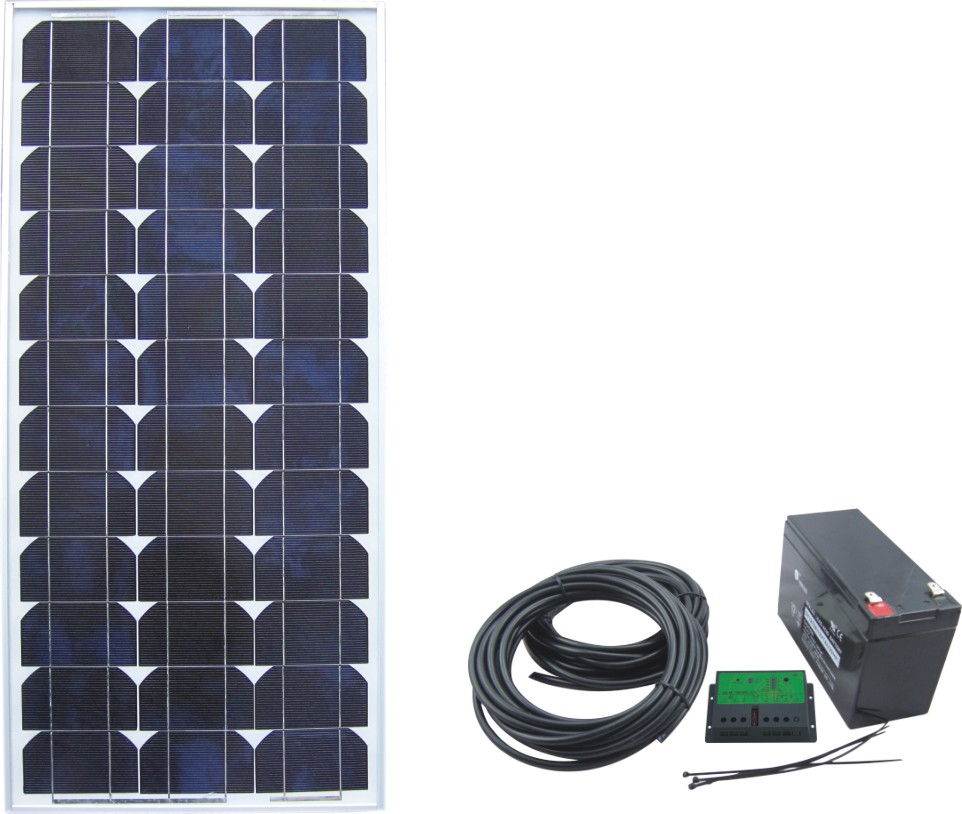

Solar Power System SPS2-50W-12V

Item Number : Solar Power System SPS2-50W-12V

Product Name : Solar Power Kits

Products Features

The SPS2 solar power system  is designed for providing the DC power supply for the DC applicants. The parts only based on our experience and suggestions. Customers may adjust the parts according to their DC load requirements.

Products Details

1. Description:
• Installs in seconds/maintenance free.
• Waterproof/rust/shock/UV-resistant frame
• Cabling includes 10 ft extension cable
• Built-in discharge protection (blocking diodes).
• Maximum power 50Wp.
• Nominal current:  2.88A & 17.6V in full sun.
• Suitable for all DC 12V applicants

2.More information:
Specification of solar panel:
Output power(peak):50W
Working voltage:17.6V
Working current:2.88A
Open voltage:21.6V
Short circuit current:3.08 A
Size:924×420×35 mm
Standard test condition:AM1.5,1000W/㎡,25℃

Solar controller: 12V,5A
Recharging battery: 12V,40Ah
Including the installation wiring kits

3.Application
Use for portable TV, radio,garden light,lantern,car battery booster,outdooractivities,etc
